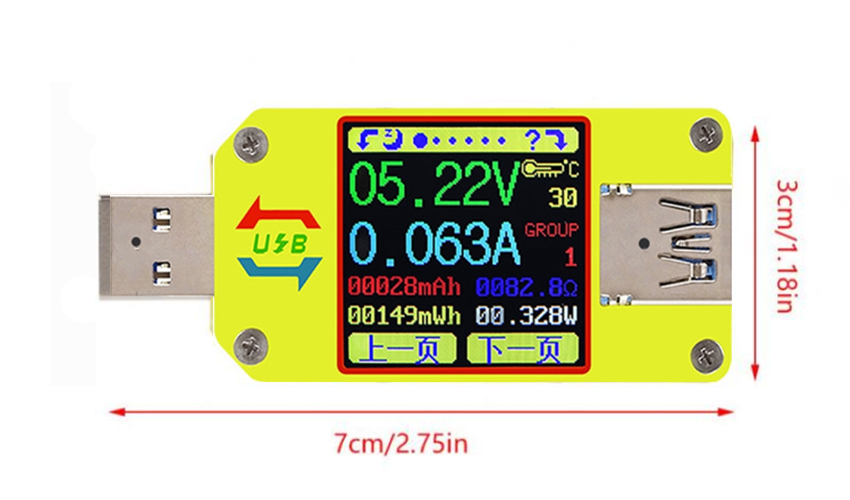

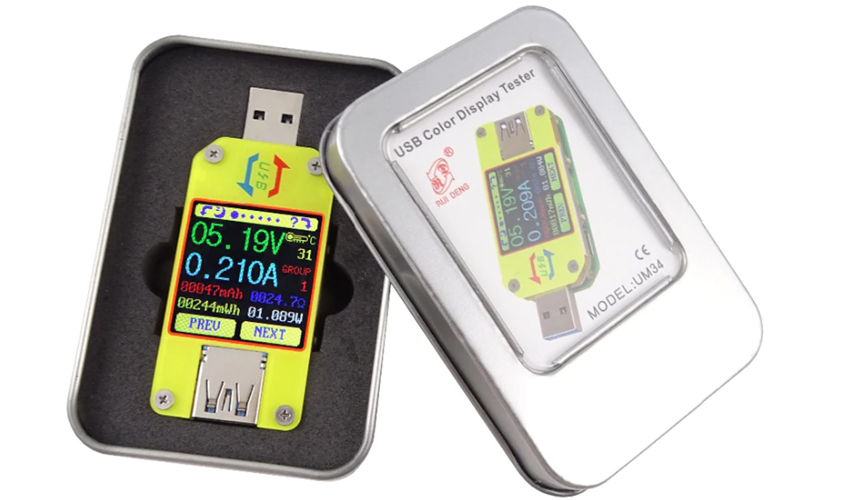

UM34C USB 3.0 Type-C Voltage Current Tester

Products

UM34C USB 3.0 Type-C Voltage Current Tester

can be used to test USB, power bank, charger, tablet, mobile phone, etc ... Multi-functions: voltage, current, capacity, temperature, multi-data measurement display,. Support for USB 3.0 port
Mode quick recognition: QC2.0 / 3.0, for Apple 2.4A / 2.1A / 1A / 0.5A, Android DCP /, SAMSUNG, equipped with a 1.44-inch color LCD display makes it easy and clear to read ..

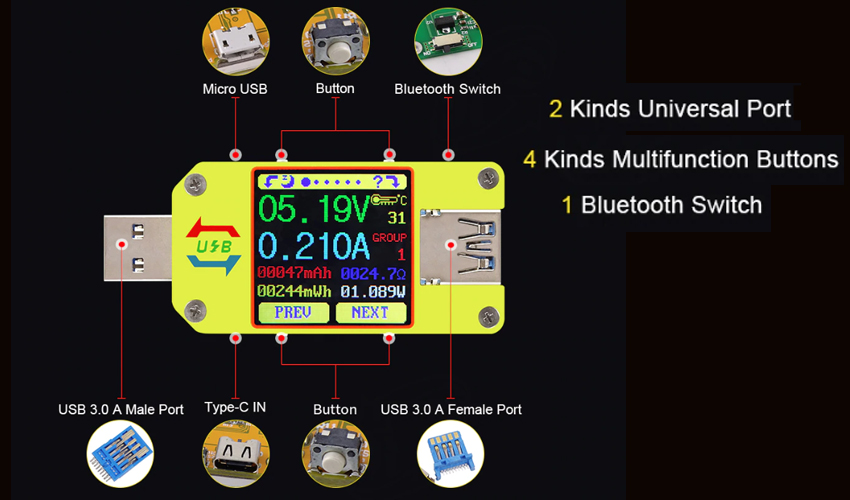

- 3 input ports: usb, micro usb and type-c,
- 2 outgoing ports: usb and type-c.

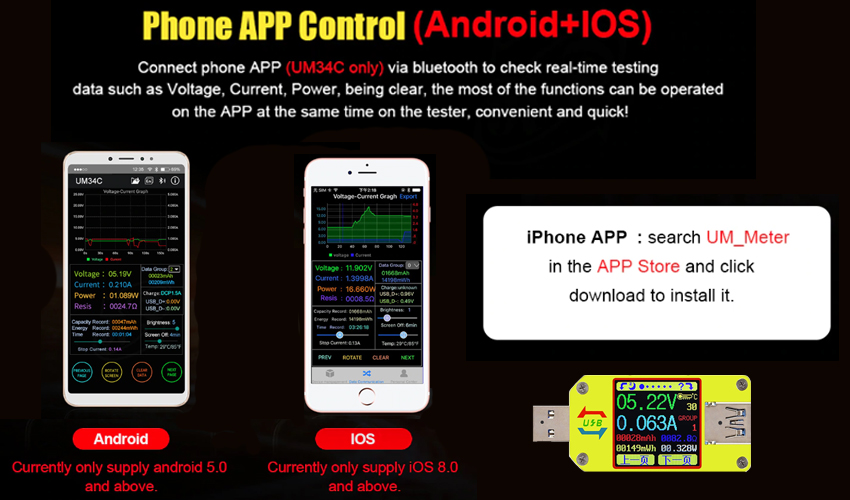

- Bluetooth

Compact, intuitive and practical to use, just insert it between the charger and the USB cable to read the voltage and current that the smartphone is using during charging.

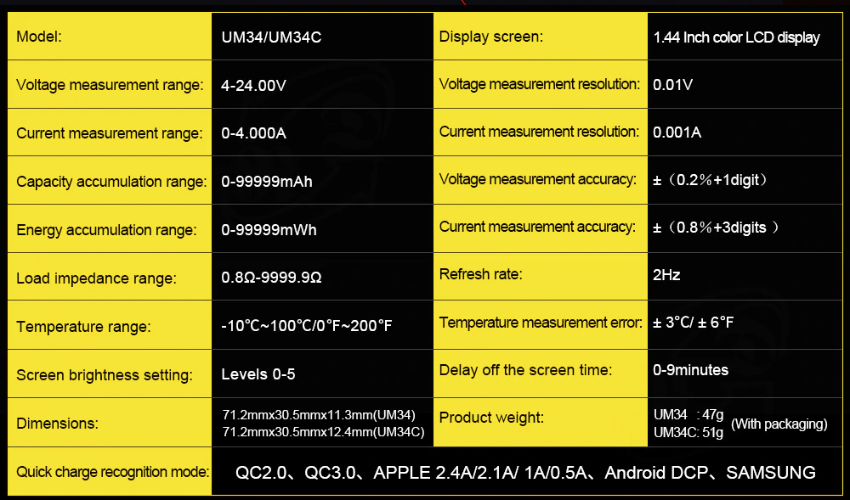

Technical specifications:

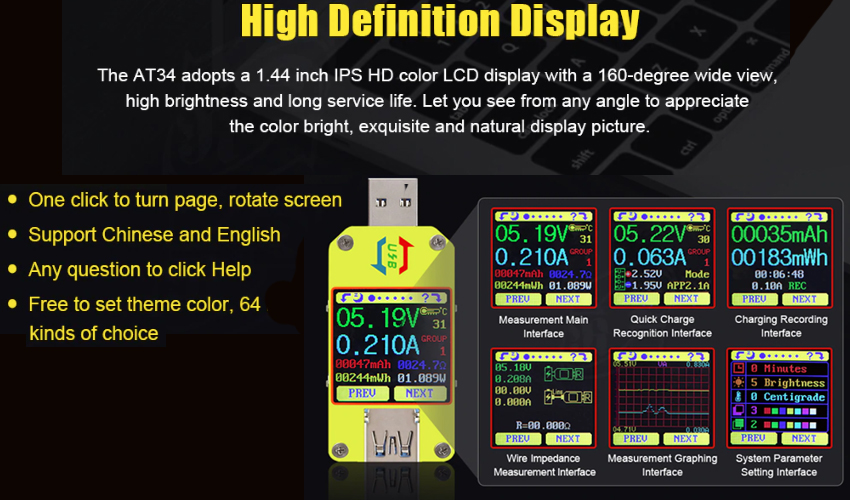

Screen: 1.44 inch
color LCD display Voltage measurement range: 4,000-24,000 V
Voltage measurement resolution: 0.01 V.
Voltage measurement accuracy: ± (0.2 ‰ + 1digit)
Current measuring range: 0-5.0000A
Current measurement resolution: 0.001 A
Current measurement accuracy: ± (0.8 ‰ + 3digit)
Accumulation Rannge capacity: 0-99999mAh
Energy scumum range: 0-999.99 Wh
Time measurement interval: 0-99h 59min 59s
Load impedance range: 0.8 Ω-9999.9 Ω
Temperature measurement range: -10 ℃ ~ 100 ℃ / 0 ℉ ~ 200 ℉
Temperature measurement error: ± 3 ℃ / ± 6 ℉

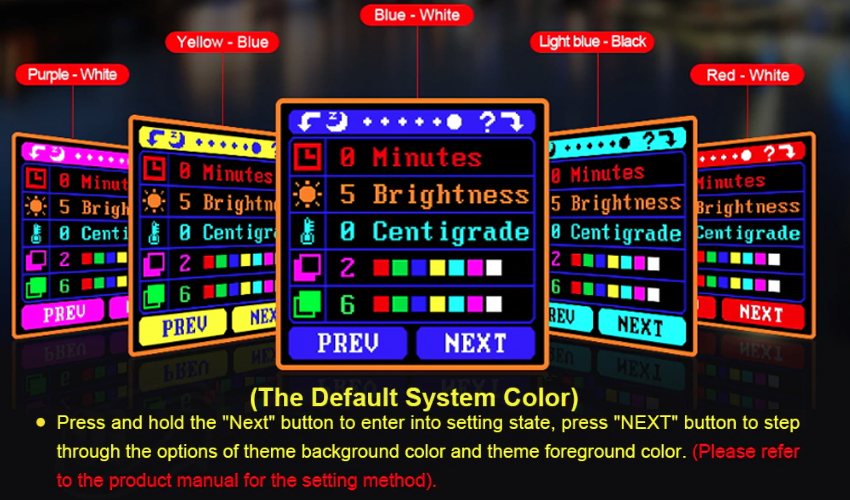

Screen brightness setting: 0-5 Level
Automatic screen off time: 0-9 minutes
Graphic voltage range: 0-24.00 V
Current graphical representation range: 0-4.0000A
Data archiving: 10 groups
Fast charge recognition mode: QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, SAMSUNG
